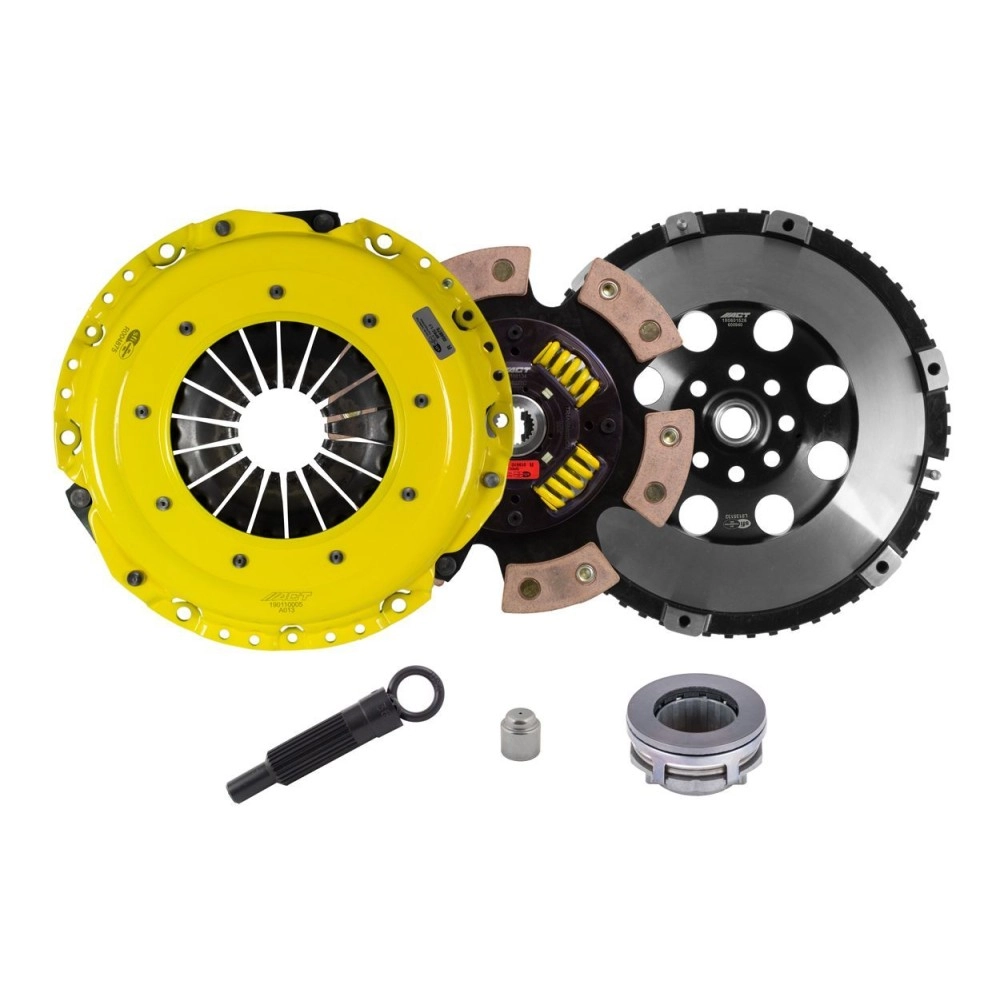

ACT AA6-XTG6 - Extreme Race Sprung 6 Pad Clutch Kit

ACT AA6-XTG6 - Extreme Race Sprung 6 Pad Clutch Kit

Ask a Question
Part #: AA6-XTG6
Authorized Dealer
Extended Fitment
$1,516.00
0 In Stock
Free Shipping
Why Buy From Us
  • Fast & Free ShippingFast & Free Shipping
  • Hassle Free ReturnsHassle Free Returns
  • In-House ExpertsIn-House Experts
  • 100% Secure PaymentSecure Payment

Item specifics

  • Fitment Vehicle Specific
  • Clutch Disc Diameter 240 mm / 9.4 Inch
  • Disc Material Ceramic
  • Disc Type Sprung
  • Flywheel Type Streetlite
  • Grade Type Performance
  • Input Shaft Diameter 0.9375 Inch
  • Input Spline Quantity 23
  • Pressure Plate Type Xtreme
  • Torque Capacity (ft/lbs.) 660
  • Torque Capacity Over OE 0.82
  • Weight 30 lbs
  • Part Type Clutch Kit
  • Country of Origin USA

Included Parts:

Product Description

ACT AA6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Key Features:

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
  • Warranty: "Excellence in Performance", backed by the best one-year warranty in the industry!

Product Documents

Name Type Actions
Generic Instructions Installation
General Warranty Warranty

Product Videos

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/

Vehicle Fitment

Year Make Model Submodel
